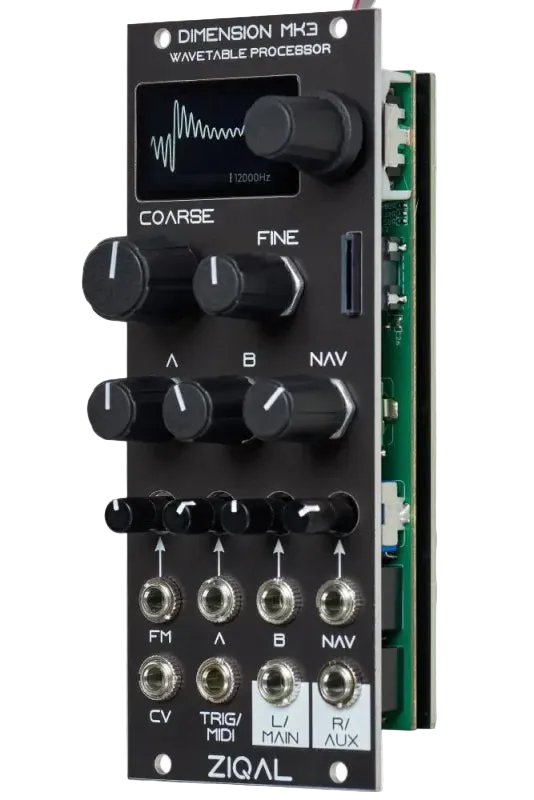

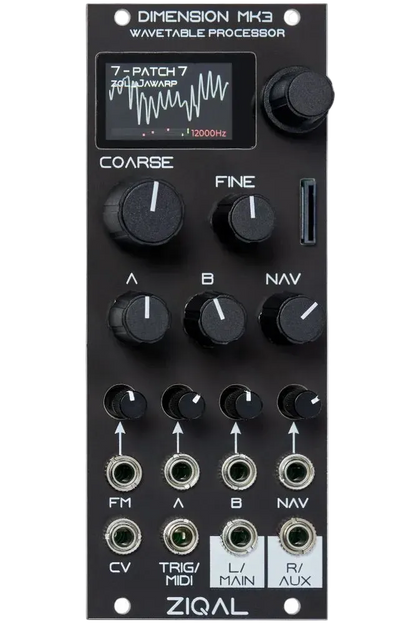

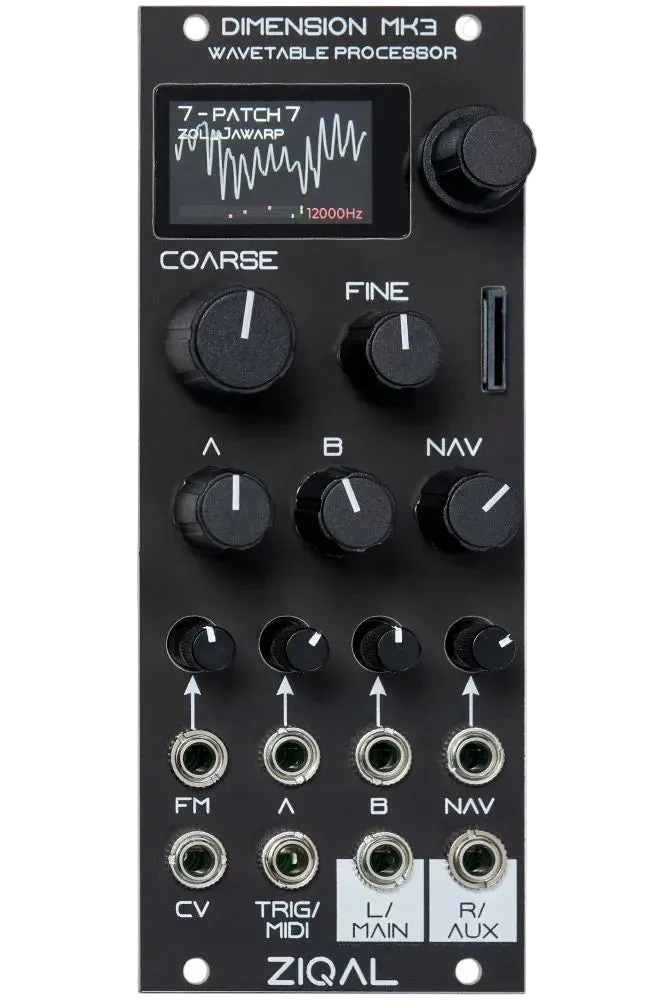

Ziqal Dimension MK3 Polyphonic Wavetable Oscillator

Ziqal Dimension MK3 Polyphonic Wavetable Oscillator

Regular price £379.00
Regular price Sale price £379.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Ziqal Dimension MK3 is a massive leap forward for wavetable synthesis in Eurorack. This third-generation version of the Dimension oscillator refines everything that made the original powerful, while adding more depth, clarity, and control. With high-resolution audio, extensive polyphony, and deep wavetable manipulation, Dimension MK3 is designed for serious sound design as well as musical performance.

At its core are 25 wavetables, each containing up to 256 individual waveforms with 2048 samples per table. These are not static sounds. The internal warp processor lets you reshape and animate wavetables in real time, opening up evolving textures, aggressive digital tones, and smooth harmonic motion. Thanks to support for up to 24 voices, Dimension MK3 can operate as a unison monster, a chord generator, a dual oscillator, or a fully polyphonic wavetable synth voice.

The updated display and stable push encoders make deep editing fast and enjoyable. You can dive into waveform selection, voice allocation, and modulation routing without menu frustration. Wavetables can also be imported via the built-in micro SD card and are compatible with popular formats from Serum and Vital, making it easy to bring your existing sound library into your modular system.

On the connectivity side, Dimension MK3 is exceptionally flexible. It offers FM input, wavetable navigation CV, and two additional wavetable parameter CV inputs, each with its own attenuator. Standard 1V per octave pitch control is supported, along with trigger and MIDI input. The auxiliary right output is particularly powerful, capable of outputting audio, secondary oscillator signals, clockable wavetable LFOs, or converted MIDI data such as gates, triggers, CV, or CC information.

Whether you need a polyphonic wavetable powerhouse, a complex digital modulation source, or a deeply programmable oscillator that integrates MIDI and CV worlds, Dimension MK3 delivers far more than its size suggests.

  • Polyphonic wavetable oscillator for Eurorack
  • 25 wavetables with up to 256 waveforms and 2048 samples per table
  • High-resolution audio engine
  • Up to 24 voices available across multiple modes
  • Improved display with push encoders for deep editing
  • Real-time wavetable warp processing
  • Classic mode with four voices and stereo output, CV or MIDI chord control
  • Dimension mode morphs across wavetable waveforms using X/Y ranges
  • Dual mode outputs different wavetables per output
  • LFO mode for use as a modulation source
  • FM input, wavetable navigation CV, and two wavetable parameter CV inputs with attenuators
  • 1V per octave pitch input
  • Trigger and MIDI input
  • Auxiliary output for audio, modulation, or converted MIDI signals

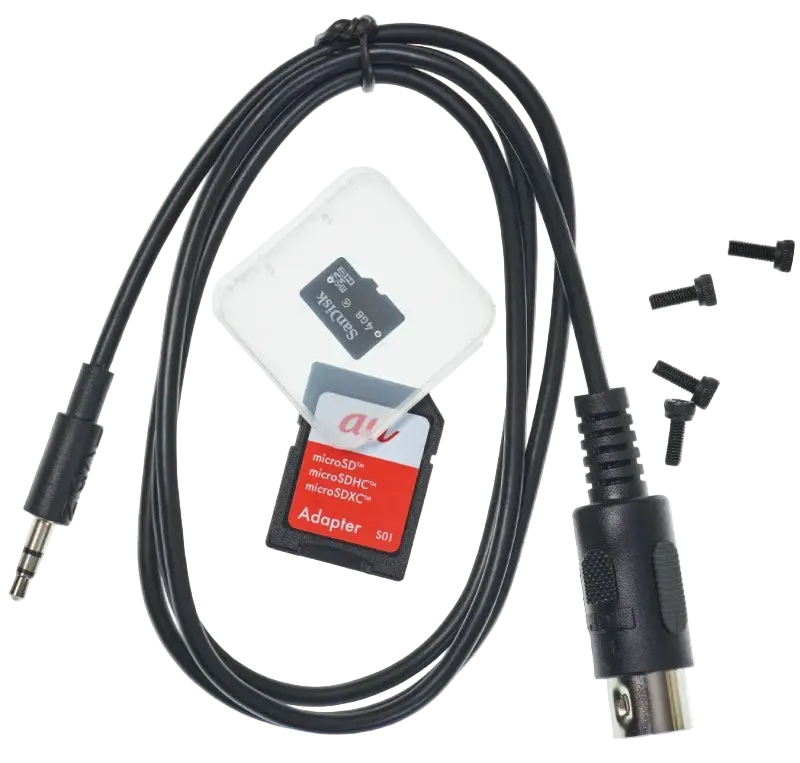

  • Integrated micro SD card slot for wavetable import
  • Compatible with Serum and Vital wavetable formats
  • MIDI TRS Type A connector (adapter not included)
