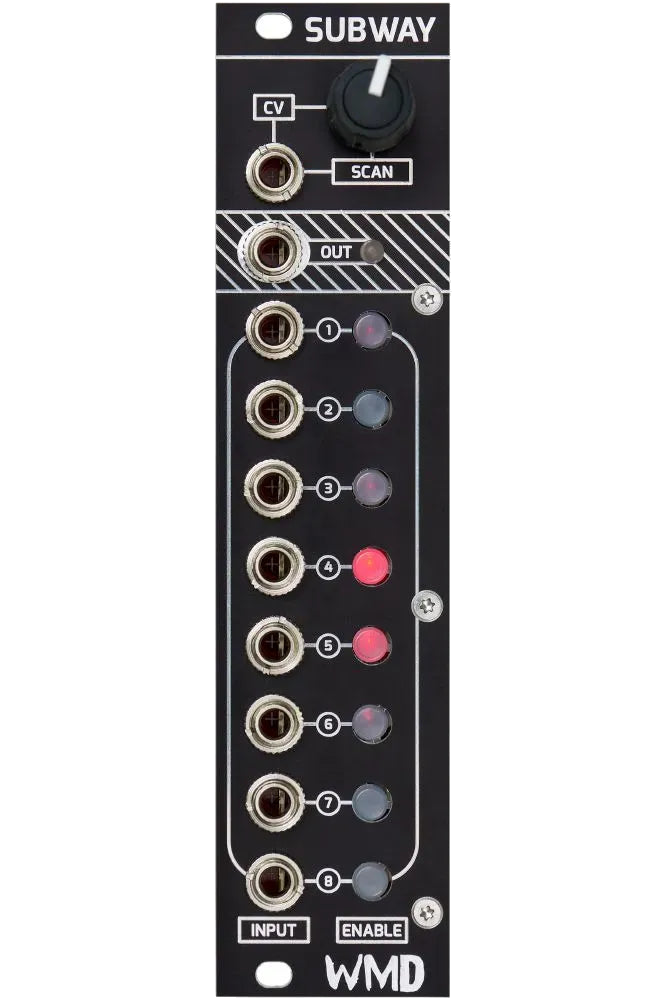

WMD SUBWAY Intelligent Crossfading Switch

WMD Subway – 8-Way Crossfading Switch & Signal Scanner

The WMD Subway is a compact, versatile 8-input crossfading switch that allows you to morph smoothly between control voltages or audio sources. Whether you're scanning through oscillator waveforms, modulating filters with complex CV blends, or building dynamic sound layers, Subway makes switching seamless and expressive.

At the core of Subway’s design are seven internal crossfaders, connecting the eight inputs in series. This lets you fade fluidly from one input to the next using either the Scan knob or an external CV signal. With manual on/off switches per channel, you have full control over which signals are in play — perfect for performance setups or focused modulation sources.

You can use Subway to:

• Morph between LFOs or audio-rate signals

• Select from preset voltages for sequenced control

• Blend multiple oscillator waveforms into one evolving output

• Dynamically route CV to different destinations

Subway features a digitally controlled analog signal path operating at 48kHz, ensuring clean audio performance with digital precision. You can also choose from three fade curves (linear, exponential, equal power) to suit your modulation or audio style.

Key Features

• 8 inputs for audio or CV

• 7 smooth internal crossfaders for seamless scanning

• Manual enable/disable switches per channel with LED indicators

• Scan control via knob or external CV input

• Digitally controlled analog signal path (48kHz)

• Limited run of 600 units

• Three selectable fade curves (linear, exponential, equal power)

• Ideal for modulation blending, waveform selection, or audio morphing
