OXI instruments Pipe expander

OXI instruments Pipe expander

£98.00
£98.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

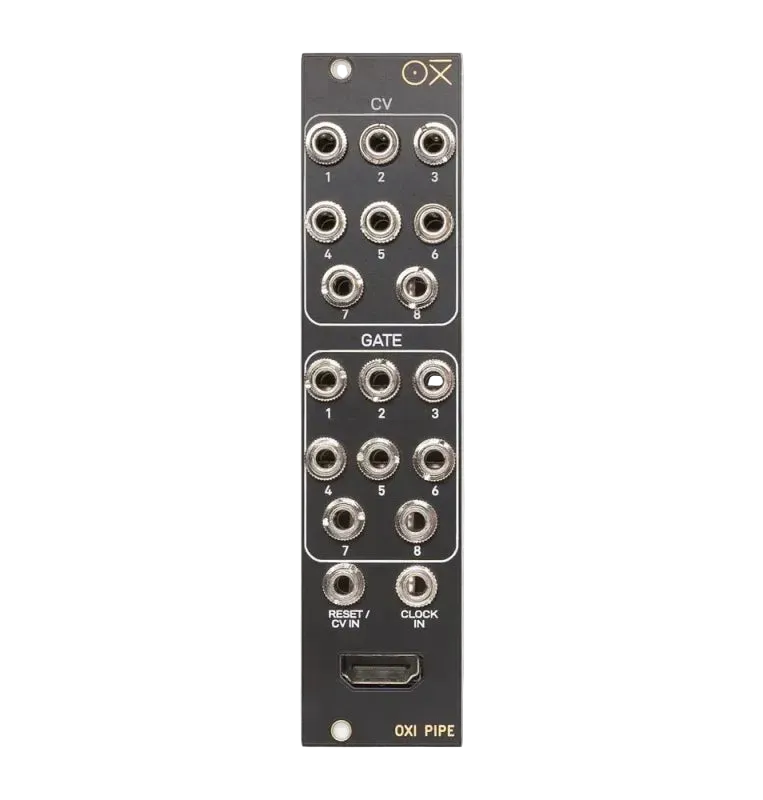

The Pipe MKII transfers all rear-panel outputs from the standalone OXI ONE MKII sequencer directly into a Eurorack environment. By linking the sequencer to the breakout module using the included mini-HDMI to HDMI cable, users can access 18 discrete timing and modulation channels from the front panel of their modular system, eliminating the need to run multiple individual patch cables from the backend of the standalone unit.

Because the module uses a fully passive circuit design, it draws zero current from the Eurorack power supply. Beyond interfacing a standalone sequencer with a modular setup, two separate Pipe MKII modules can be chained together to function as a multi-signal patch bridge between two independent Eurorack cases.

Module Width: 6HP

Hardware Compatibility: Engineered exclusively for the OXI ONE MKII sequencer ecosystem (incompatible with MKI hardware models).

Centralized High-Density Breakout: Routes 8 discrete analog CV outputs and 8 discrete Gate outputs directly into the rack.

System Synchronization I/O: Dedicated master clock and reset trigger outputs to maintain phase-alignment across hardware.

Passive Architecture: Draws 0mA from the system power bus, requiring no internal power ribbon cable connection.

Case Interconnectivity: Supports rack-to-rack signal bridging capabilities when combining two units across separate enclosures.

Bundled Interconnect: Package includes a dedicated mini-HDMI to HDMI connection cable.

Low-Profile Enclosure Depth: 20 mm mounting depth profile, allowing for installation in shallow skiff cases.
