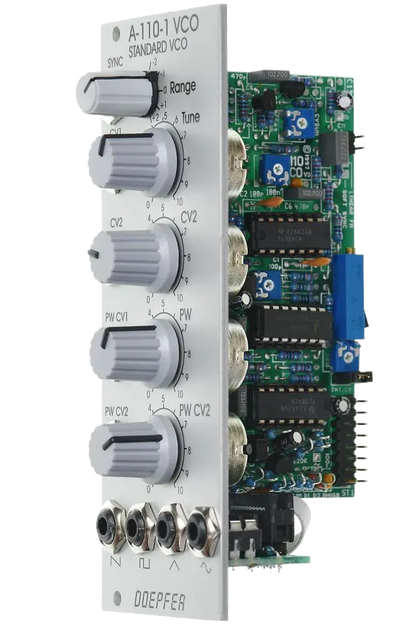

Doepfer A-110 Standard VCO

The Doepfer A-110-1 is a classic analog VCO designed as a foundational audio source in any Eurorack system. It features four simultaneous waveform outputs—sawtooth, pulse, triangle, and sine—and offers a stable pitch range over approximately 3.5 octaves once warmed up.

Pitch control includes a five-position octave switch and a fine-tune knob. The module accepts two CV inputs for frequency control: one with a 1V/oct standard and another with an attenuator for modulation depth. A dedicated sync input allows for hard synchronisation to another oscillator.

The pulse output features manual and CV-controllable pulse width modulation, allowing a full range from 0% to 100%. At extreme settings, this can cancel the waveform, offering creative modulation potential. The A-110-1 is a dependable workhorse oscillator, well suited to both melodic and complex modular patches.

Key Features

• 10HP width

• Analog triangle-core oscillator

• Four simultaneous outputs: sine, triangle, sawtooth, pulse

• 1V/oct CV input for pitch tracking

• Additional CV input with modulation depth attenuator

• Manual tuning and 5-position octave rotary switch

• Hard sync input for oscillator synchronisation

• Pulse width modulation via manual control and CV

• Full PWM range from 0% to 100%

• Stable tuning over approx. 3.5 octaves after warm-up

• Available in-store for demo
