Doepfer – A-100 Suitcase P9 (PSU3)

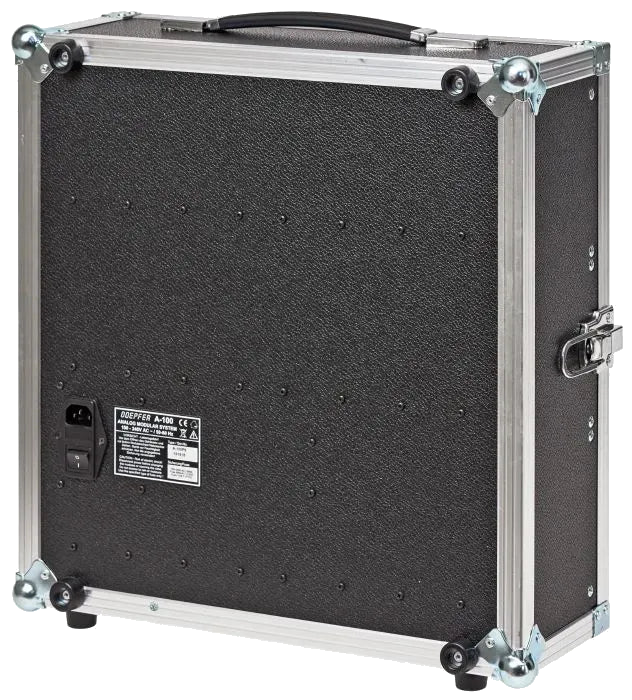

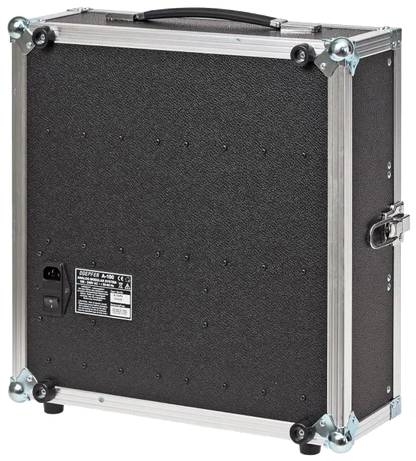

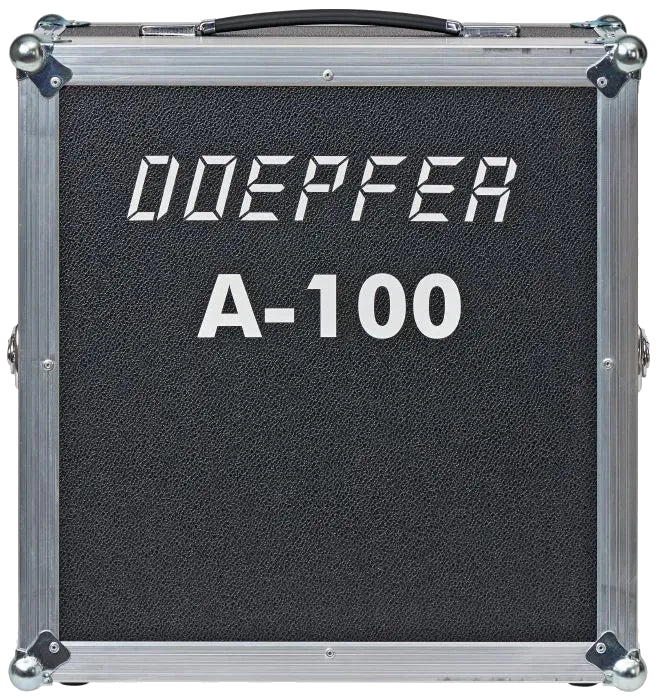

The Doepfer A-100 Suitcase P9 is a portable 9U Eurorack enclosure offering three rows of 84HP, totalling 252HP of usable space. Designed for travel and live setups, it features a sturdy flightcase build with edge protection, a handle, and a deep lid that allows you to keep your system patched while on the move.

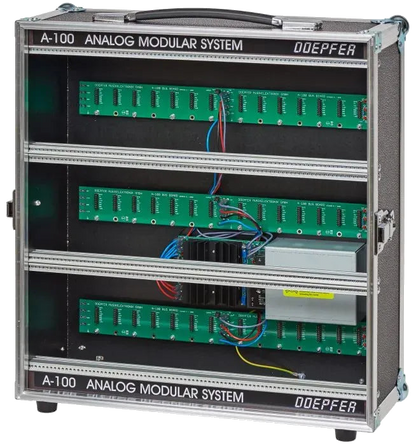

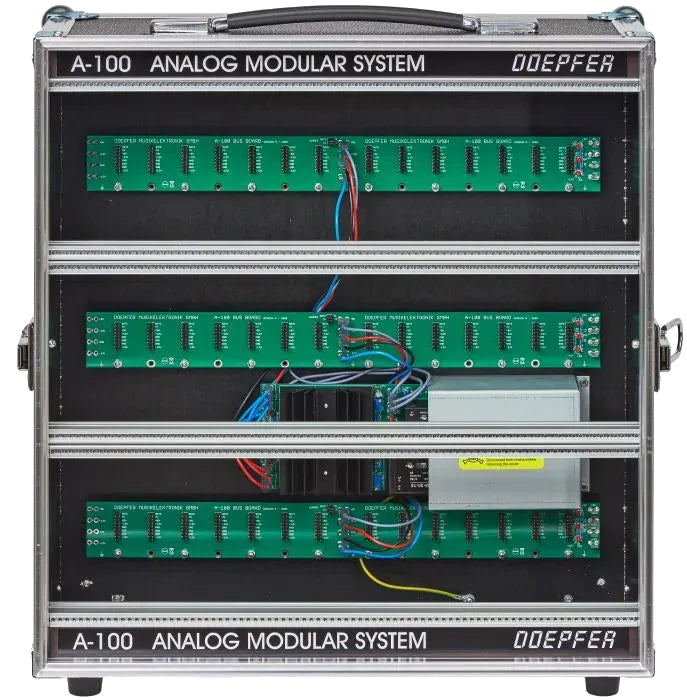

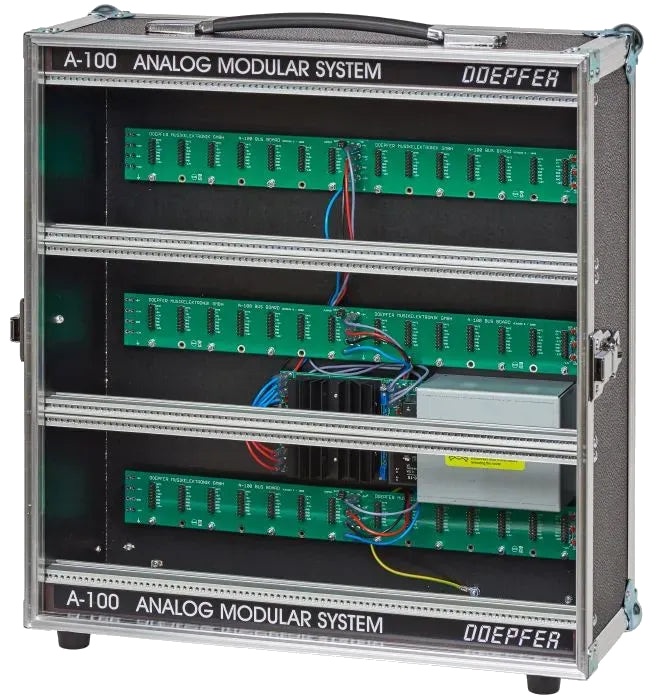

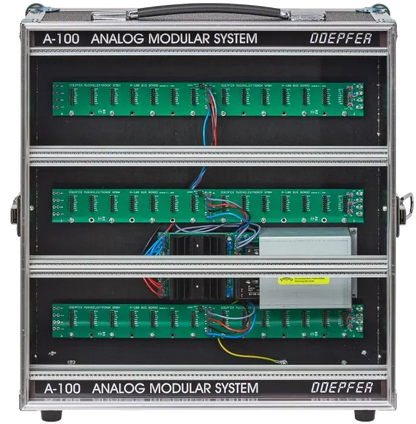

Power is supplied by the integrated PSU3 switch-mode supply, delivering +12V at 2A, -12V at 1.2A, and +5V at 4A. It supports mains input from 100–240V, making it suitable for international use. Three busboards provide a total of 42 module connectors, and internal depth ranges from around 70mm above the PSU to 100mm elsewhere.

The A-100 P9 balances durability, power, and portability—ideal for large modular systems that need to stay mobile.

Key Features

• 252HP total (3 × 84HP rows)

• 9U flightcase-style portable enclosure

• Built-in PSU3: +12V/2A, -12V/1.2A, +5V/4A

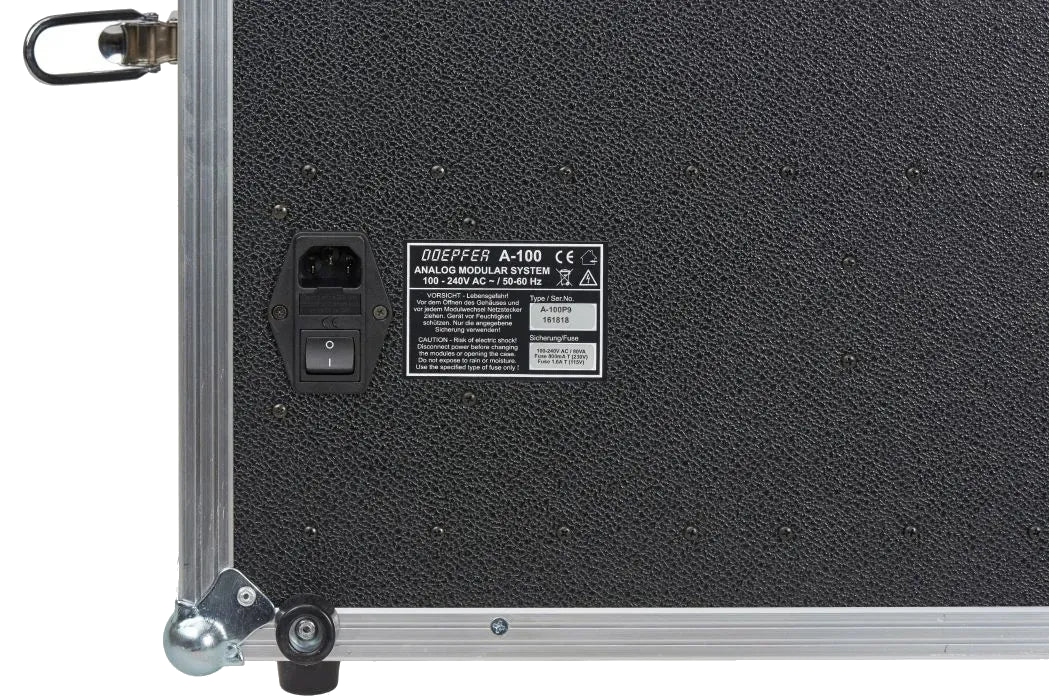

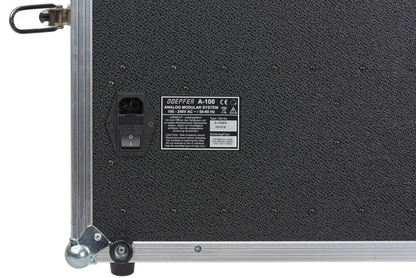

• Accepts global mains input (100–240V)

• Three busboards with 14 connectors each

• Usable depth: approx. 70mm (above PSU), 100mm elsewhere

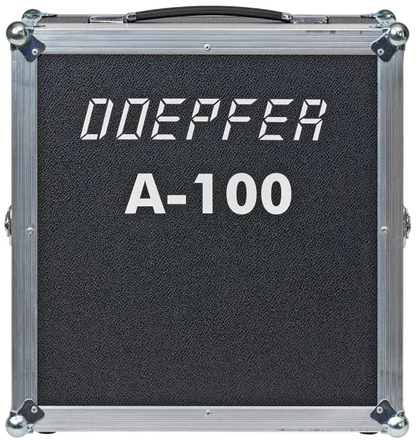

• Lid allows transport while patched

• Protective ball corners and carry handle

• Approx. 8.3kg (without modules)

• Available in-store for demo
