BlaknBlu Oscar DSF - Dual Stereo DSF Oscillator

BlaknBlu’s Oscar DSF reimagines the sound of FM synthesis through a different kind of math: Discrete Summation Formulae (DSF). While the term might sound like something out of a thesis paper, the results are strikingly musical — lush harmonic content, dynamic stereo behaviour, and no menu diving or matrix routing. It’s everything you love about FM, but simplified.

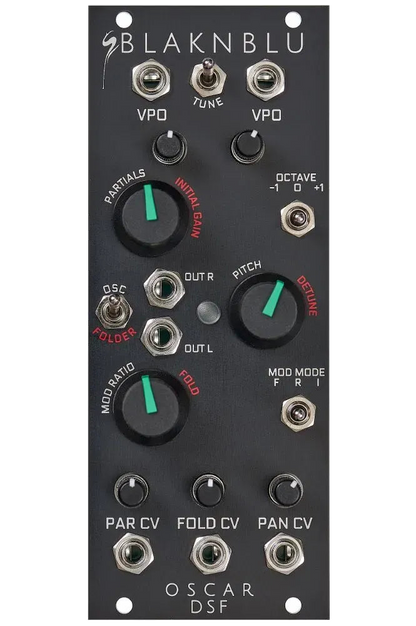

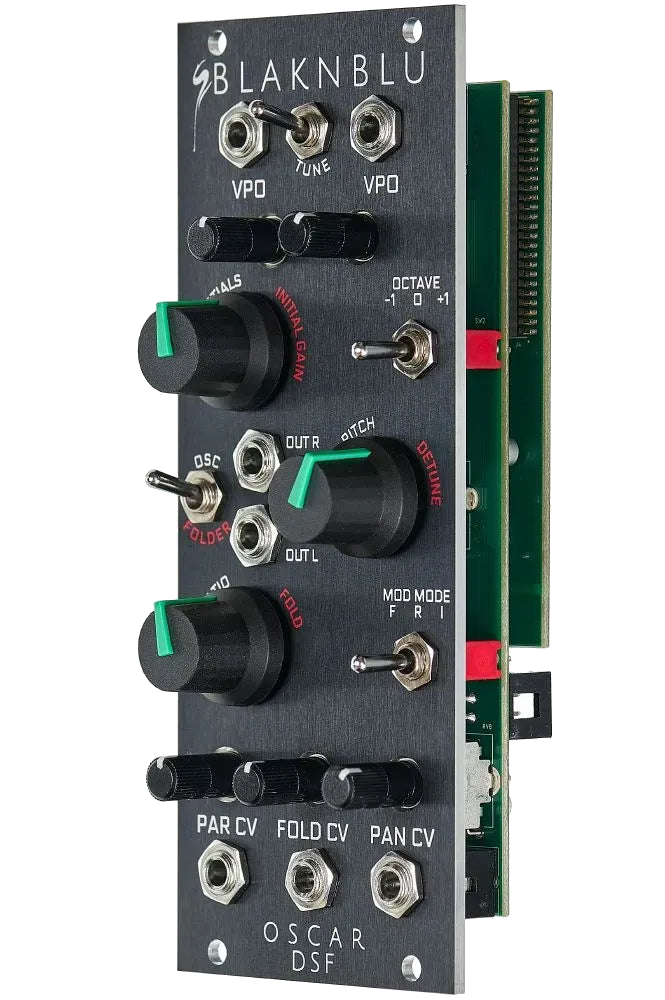

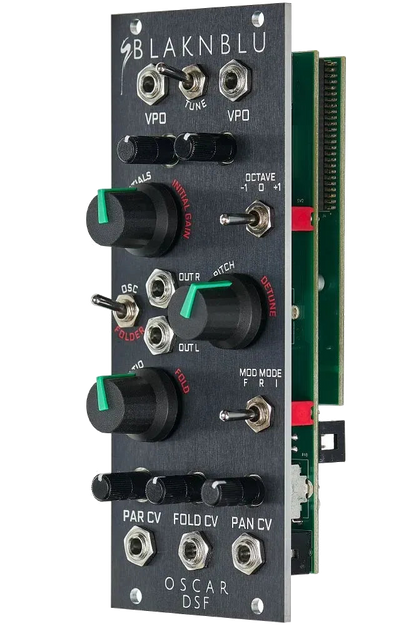

Inside this 10HP stereo oscillator are two DSF-based voices. Instead of traditional FM modulation chains with multiple carriers and modulators, the Oscar DSF uses two intuitive parameters:

• Partials (which determine harmonic richness)

• Mod Ratio (defining the relationship between harmonics)

A three-way mode switch changes the rules of the harmonic game, switching between Free, Rational, and Irrational modulation types — each providing different musical (or unmusical!) interactions between partials.

Each oscillator is fed through an FM-based wavefolder stage — technically an FM operator with a zero carrier, but in practice it delivers a smooth, characterful wavefolding experience, with responsive CV control and beautiful tonal shaping.

The stereo implementation is another standout. Both oscillators track the same pitch CV, but Oscillator 2 can detune up to an octave up or down, enabling frequency beating, chorusing, or full-on stereo spread. CV-controllable panning complete the voice, making this a truly stereo sound source straight out of the box.

Other thoughtful features include:

• A TUNE switch that toggles between a fixed A440 reference tone and CV input tracking

• Octave switch for quick transposition

• Dual function knobs that control either oscillator frequency or wavefolding depth

Whether you're after shimmering pads, metallic percussion, thick bass, or harmonically rich leads, Oscar DSF delivers classic FM vibes with a unique and approachable twist.

Features:

• Dual stereo oscillator based on DSF synthesis

• Wavefolder stage based on FM operator design

• Stereo panning

• Three modulation modes: Free (F), Rational (R), Irrational (I)

• CV control over Partials and Fold

• Oscillator detune range of ±1 octave

• Dual function OSC/FOLDER knob behaviour

• Two Volt/Octave inputs with attenuators

• TUNE switch for A440 reference or pitch hold

• Octave range switch

• Dual stereo outputs (L/R)

• 10HP module width

Available in-store for demo
• Discrete Summation Formulae-based synthesis
• Smooth FM-style wavefolder
• Dual stereo oscillator with detune
• Built-in VCA and CV panning
• A440 tuning reference switch
• Stereo output
• 10HP
