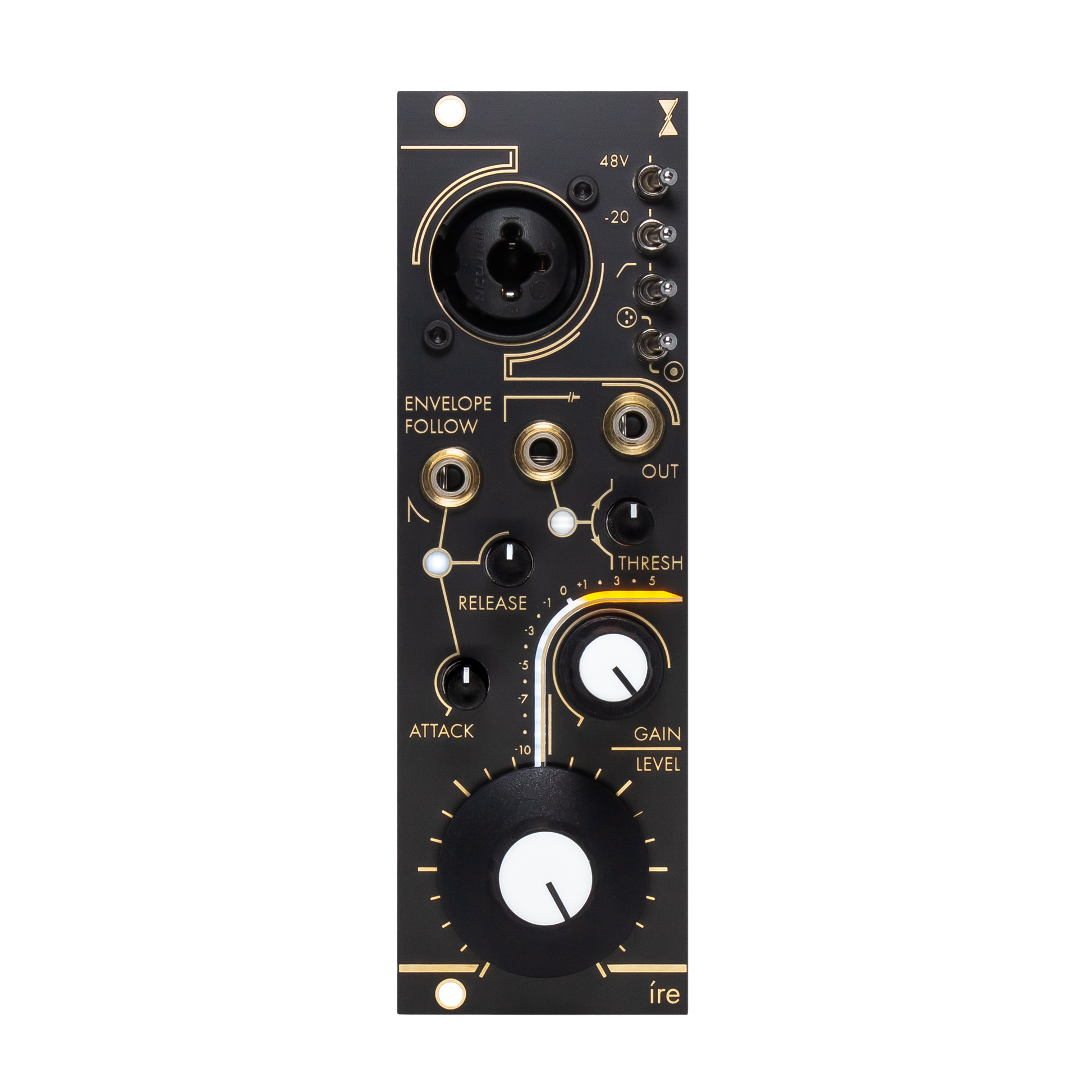

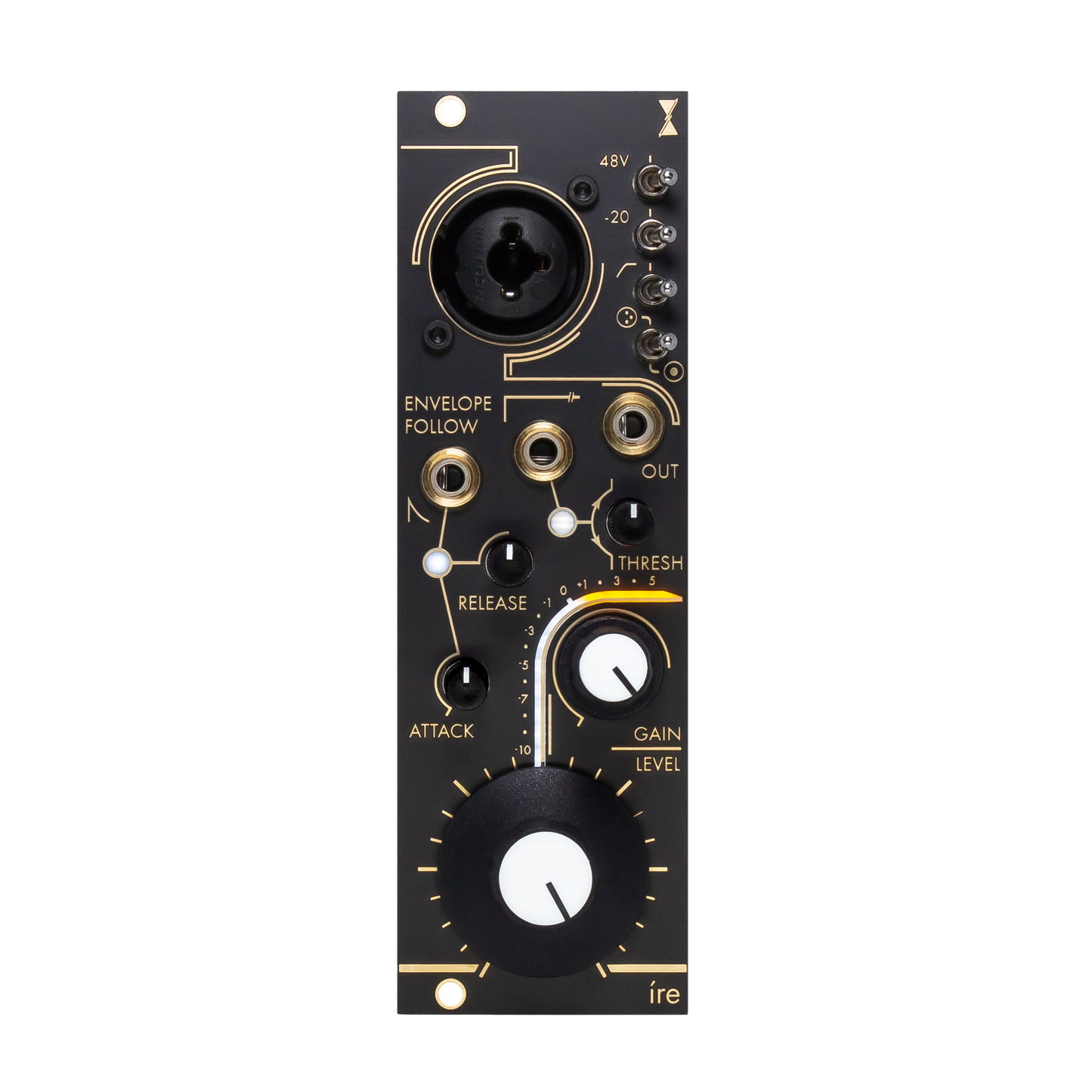

Instruō íre External Input & Microphone Preamp Module

Instruō íre External Input & Microphone Preamp Module

Regular price £319.00
Regular price Sale price £319.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

The íre is designed to bridge the gap between acoustic sound sources and modular signal levels with zero compromise. It features two distinct preamplification paths: a high-quality transformer-coupled input specifically tuned for microphones and a tube-like FET preamp for instruments and line-level signals. Whether you are capturing delicate vocal nuances with the 48V phantom power engaged or driving an electric guitar into warm, saturated FET territory, the íre provides the gain staging necessary to make external audio feel like a native part of your patch.

Beyond simple amplification, the íre acts as a bridge for control logic. An integrated envelope follower tracks the amplitude of your incoming audio, while a built-in comparator generates gates and triggers based on your signal's peaks. This allows a vocalist or instrumentalist to physically "conduct" the modular system, using their volume and phrasing to open filters, trigger envelopes, or clock sequencers. With an 80Hz high-pass filter to eliminate stage rumble and individual gain/level controls, the íre is as much a performance tool as it is a utility interface.

  • Dual-Path Preamplification: High-quality transformer input for microphones and a FET-based circuit for instruments/line sources.
  • Pro Microphone Features: Integrated phantom power and a -20dB pad for handling high-SPL sources.
  • Tube-Like Character: FET preamp provides "colour" and saturation reminiscent of classic tube gear.
  • Dynamic CV Extraction: Built-in envelope follower converts audio amplitude into a control voltage.
  • Signal Logic: Integrated comparator for generating gates and triggers from incoming audio.
  • Spectral Cleaning: 80Hz high-pass filter (HPF) to remove low-end mud and DC offset.
  • Precise Gain Staging: Independent gain and level controls for fine-tuning the input-to-rack ratio.
  • Compact Footprint: 8HP width and 45mm depth, compatible with most standard and performance cases.
